✦Video & Media

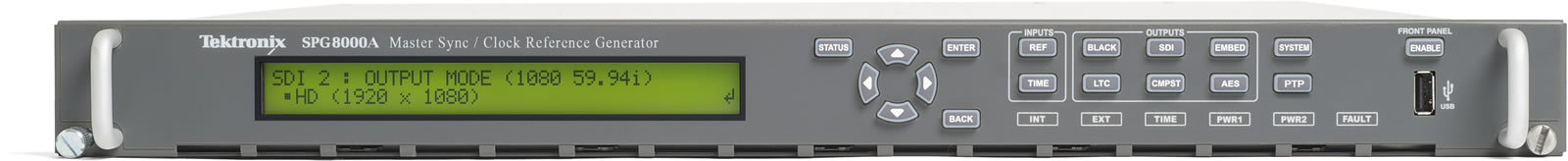

SPG8000A

Manufacturer
Tektronix
Model
SPG8000A
Code
GW-7V1AJO
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Generates
generates
NTSC/PAL black burst, HD tri-level sync, SD/HD/3G-SDI test patterns, composite analog, 4K/UHD color bars
1
Reference Outputs
reference_outputs
3 analog sync outputs (base), up to 7 with Option BG
1
Ltc Outputs
ltc_outputs
4 independent LTC outputs
1
Time Reference
time_reference
GPS/GLONASS, PTP (IEEE 1588, ST 2059-2, AES67), NTP server, LTC/VITC
1
Power Supplies
power_supplies
dual hot-swappable (redundant)
1
Rack units
rack_units
1RU full-widthRU
1
Height
height_mm
44mm
1
Width
width_mm
483mm
1
Depth
depth_mm
567mm
1
Weight
weight_kg
~6 (base unit, without rack rail)kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
