Staging & Structures

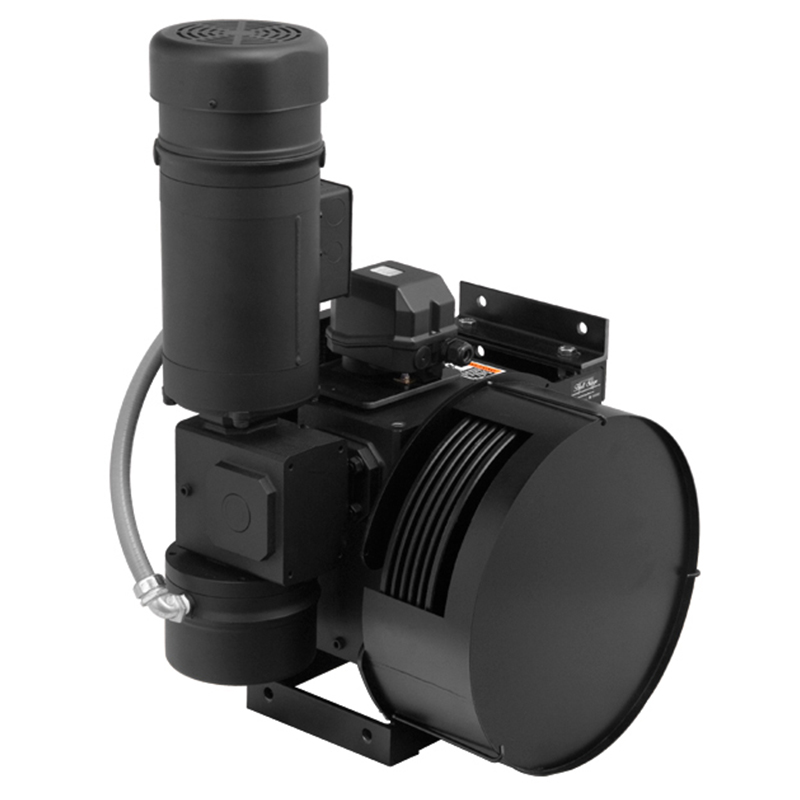

Pilewind Hoist

Model
PW21
Code
GW-XIXTEE
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Load Capacity Lbs
load_capacity_lbs
2100lbs
1
Load capacity
load_capacity_kg
953kg
1
Lift Speed Fpm
lift_speed_fpm
20fpm
1
Max Travel Ft
max_travel_ft
50 (3/16" rope) / 35 (1/4" rope)ft
1
Wire Rope Diameter
wire_rope_diameter
3/16" or 1/4"in
1
Lift Lines
lift_lines
4 to 10
1
Braking
braking
primary motor brake + secondary electric brake
1
Gearing
gearing
double reduction worm gears
1
Mounting
mounting
floor, wall, or ceiling
1
Model Variants
model_variants
PW12 (1200 lbs), PW21 (2100 lbs)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
