✦Truss: Straight / Corners

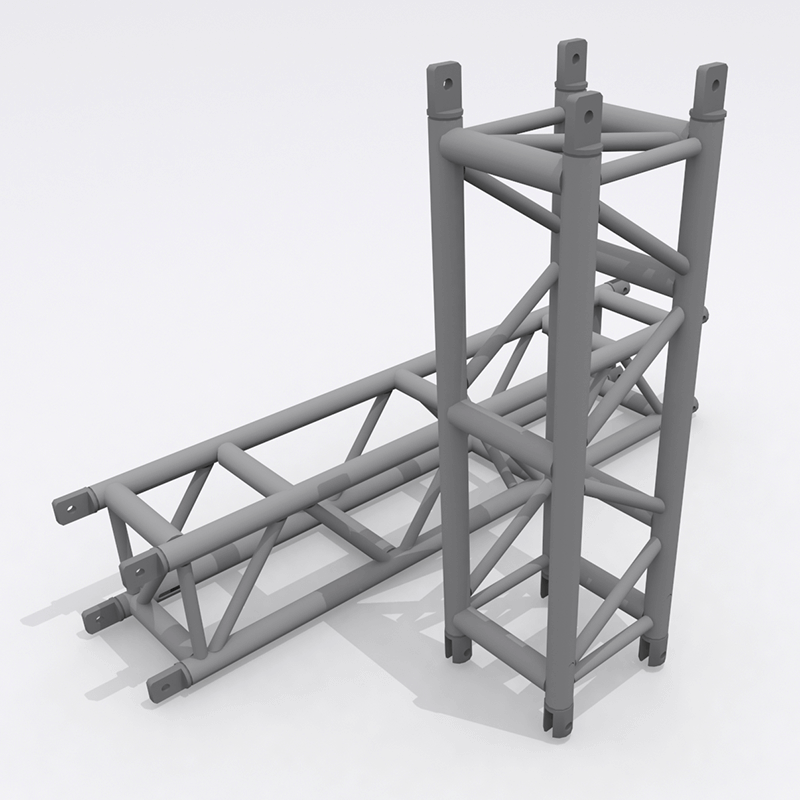

GS Truss

Manufacturer
Total Fabrications
Model
GS (35cm square)
Code
GW-NVTRU2
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Dimensions
dimensions
347 x 347mm
1
Main chord diameter
main_chord_diameter_mm
48.4mm
1
Main chord wall thickness
main_chord_wall_thickness_mm
4.47mm
1
Brace Diameter
brace_diameter_mm
25.44mm
1
Material
material
EN AW-6082 T6 aluminium alloy
1
Udl
udl_kg
2207kg
1
Udl Span
udl_span_m
8m
1
Weight
weight_kg
25 (8ft section)kg
1
Connector type
connector_type
Fork End with TP or GP pins & R3 clips
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
