✦Moving Head (Spot/Wash/Beam)

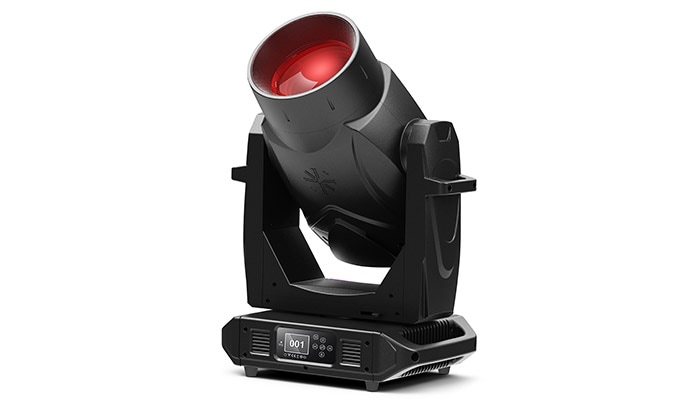

VL10 BeamWash

Manufacturer
Vari-Lite
Model
VL10 BeamWash
Code
GW-UBOJ6F
Data status
Level 1 / 5
AI-parsed

❋ Specs

21
Weight
weight_kg
33kg
1
Dimensions
dimensions
704 x 501 x 320mm
1
Light source
light_source
Philips 25R Platinum, 550W
1
Power
power_w
950W
1
Power Connection
power_connection
Neutrik TrueOne (input only)
1
Output lumens
output_lumens
28000lm
1
Color temperature
color_temperature_k
7500K
1
CRI (Ra)
cri_ra
84
1
Beam angle
beam_angle_deg
2.2-48deg
1
Narrowest Beam
narrowest_beam
0.7deg
1
Lens Size
lens_size_mm
180mm
1
Color system
color_system
CMY glass flags (8-bit) + fixed color wheel (10 colors + open)
1
Gobos
gobos
8 rotating + 8 fixed aperture gobos
1
Prisms
prisms
8-facet round + 6-facet linear, dual overlay
1
Frost
frost
Variable 1 deg light frost + heavy wash frost
1
Animation Wheel
animation_wheel
VL*FX
1
Strobe
strobe
0-30Hz
1
Protocols Supported
protocols_supported
DMX (RDM), Art-Net
1
DMX channels
dmx_channels
41 (16-bit enhanced) / 36 (16-bit) / 31 (clone)
1
Data Connections
data_connections
5-pin XLR in/thru, RJ45
1
Cooling
cooling
Forced air, continuous / auto ramping
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
