✦Moving Head (Spot/Wash/Beam)

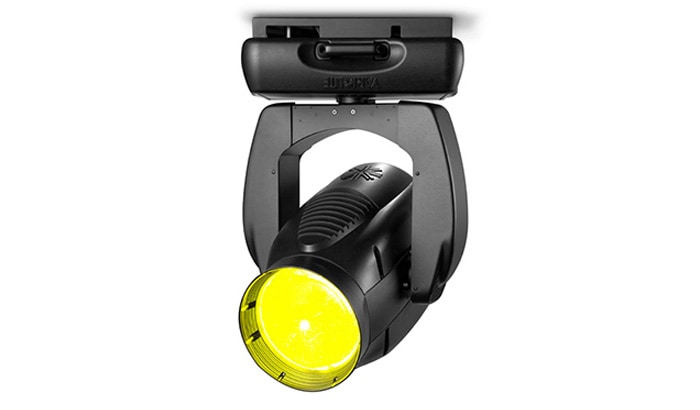

VL3500 Wash

Manufacturer
Vari-Lite
Model
20.9686.0001
Code
GW-UR7ZD7
Data status
Level 1 / 5
AI-parsed

❋ Specs

18
Weight
weight_kg
43.5kg
1
Light source
light_source
Triple wattage double-ended short arc lamp
1
Lamp power
lamp_power_w
900 / 1200 / 1650W
1
Luminous flux
luminous_flux_lm
>70000lm
1
Color temperature
color_temperature_k
6000 at 1650W; 6300 at 900/1200WK
1
Power
power_w
7-12A
1
Voltage Range
voltage_range_v
200-264VAC
1
Frequency
frequency_hz
50/60Hz
1
DMX channels
dmx_channels
19
1
Color system
color_system
CYM color mixing, variable CTO, two five-position color wheels
1
Zoom ratio
zoom_ratio
2.7:1 (Fresnel lens) / 4:1 (Buxom lens)
1
Pan
pan_deg
540deg
1
Tilt
tilt_deg
270deg
1
Aperture Wheel
aperture_wheel
Five openings: 25, 30, 35, 40, 52 mm, continuous rotationmm
1
Strobe
strobe
Dual blade strobe and dousing system, ultra-fast operation
1
Cooling
cooling
Forced air cooling
1
Certifications
certifications
ETL, ETLc, CE
1
Mounting Position
mounting_position
Any orientation
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
