✦Moving Head (Spot/Wash/Beam)

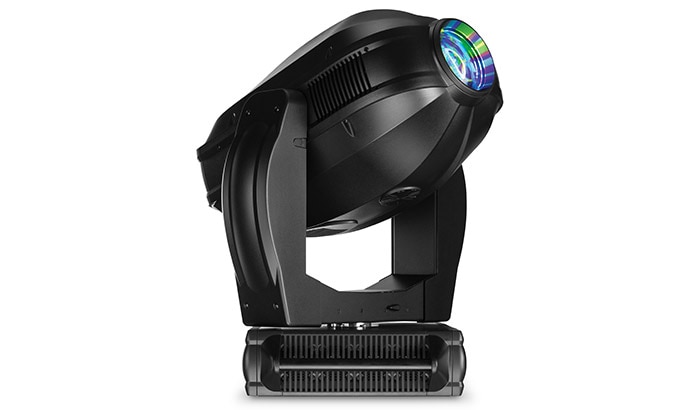

VL4000 Spot

Manufacturer
Vari-Lite
Model
20.9704.0001
Code
GW-JRBBKK
Data status
Level 1 / 5
AI-parsed

❋ Specs

19
Light source
light_source
1200W Philips MSR Gold FastFit short arc lamp
1
Power
power_w
1400W
1
Luminous flux
luminous_flux_lm
33000lm
1
Luminous Flux Studio Lm
luminous_flux_studio_lm
25000lm
1
Color temperature
color_temperature_k
6000K
1
Zoom range
zoom_range_deg
9-47deg
1
Zoom ratio
zoom_ratio
5:1
1
Pan
pan_deg
540deg
1
Tilt
tilt_deg
270deg
1
DMX channels
dmx_channels
57 (Enhanced 16-bit) / 52 (16-bit)
1
Control protocols
control_protocols
DMX512, RDM
1
Power input
power_input
200-240VAC, 50/60 Hz
1
Max current
max_current_a
11.0A
1
Cooling
cooling
Forced air cooling
1
Weight
weight_kg
40.9kg
1
Dimensions
dimensions
807.7 x 570.5 x 624.1mm
1
Gobo wheels
gobo_wheels
Two seven-position rotating, indexable gobo wheels
1
Prism
prism
Rotating/indexing 3-facet prism with variable divergence
1
Color system
color_system
CYM cross-fading mixing + variable CTO correction + dual five-position fixed color wheels
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
