LED Screens

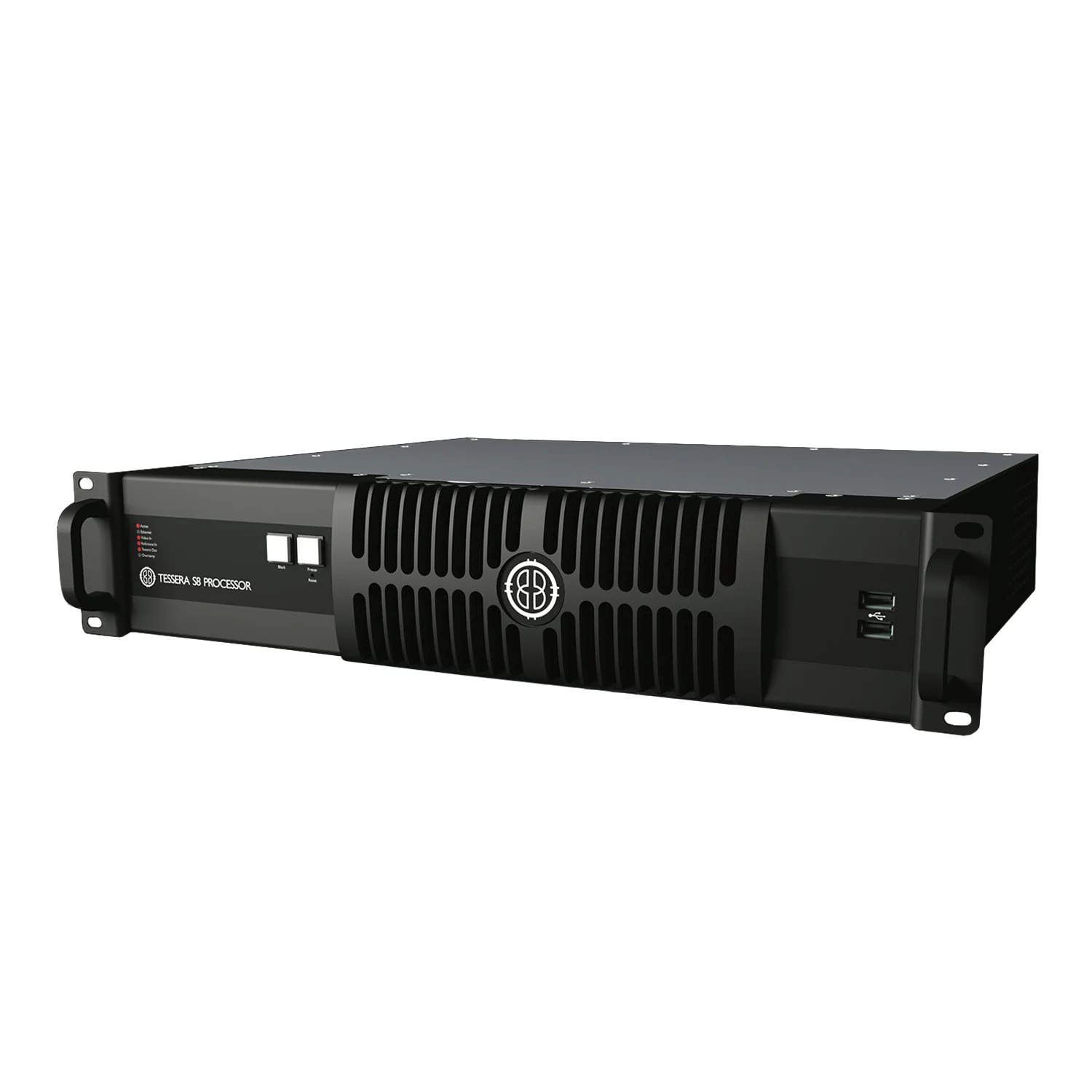

Tessera S8

Model
Tessera S8
Code
GW-XQV7PP
Data status
Level 1 / 5
AI-parsed

❋ Specs

20
Outputs
outputs
8 x 1 Gigabit Ethernet (Tessera 1G)
1
Max Pixels Per Output
max_pixels_per_output
525000px
1
Max Output Pixels
max_output_pixels
4500000px
1
Video input
video_input
HDMI 2.0b (18 Gbps), 12G-SDI
1
Max input resolution
input_resolution_max
4096 x 2160px
1
Input Frame Rate Hz
input_frame_rate_hz
23.98-250Hz
1
Color Depth
color_depth
8, 10 and 12 bits per colourbit
1
Internal Processing
internal_processing
12-bit 4:4:4
1
Latency Frames
latency_frames
2frames
1
Max frame rate
max_frame_rate_fps
250fps
1
Processing Features
processing_features
HDR (PQ/HLG), Dynamic Calibration, Extended Bit Depth, Ultra Low Latency, HFR+, Frame Remapping, ShutterSync, 3D LUT Import, OSCA, Dark Magic, ChromaTune, Stacking
1
Redundancy
redundancy
Closed loop redundancy (HD output)
1
Genlock
genlock
Bi-level and Tri-level sync
1
Remote Control
remote_control
Art-Net, sACN, DMX-512A (5-pin XLR), IP Control
1
Dimensions
dimensions
482.6 x 88.9 x 406.4 (WxHxL), 19" 2Umm
1
Weight
weight_kg
7.50kg
1
Power Input Voltage
power_input_voltage
100-240V AC, 50-60Hz, autorangingV
1
Power Current
power_current_a
1.2-0.6A
1
Certifications
certifications
CE, ETL/cETL
1
Warranty
warranty_years
2years
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
