✦LED Screens

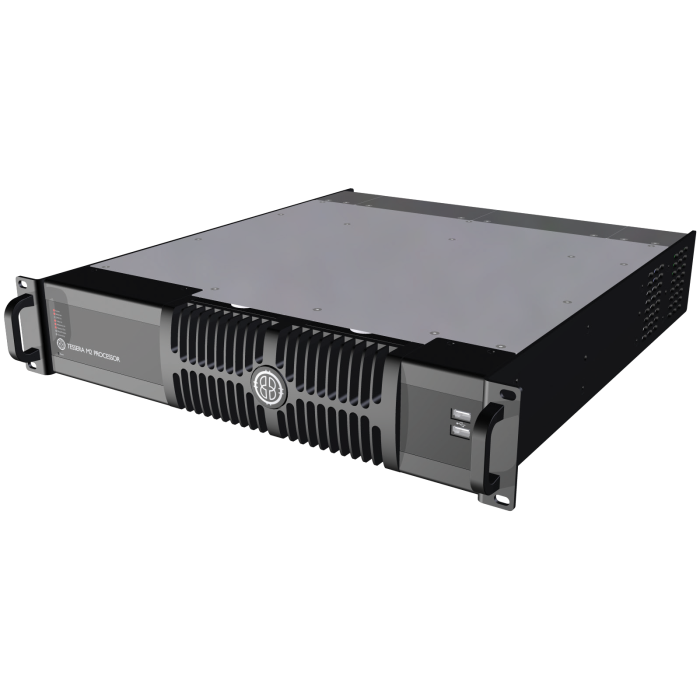

Tessera XD

Manufacturer
Brompton Technology
Model
Tessera XD
Code
GW-QSGE4P
Data status
Level 1 / 5
AI-parsed

❋ Specs

15
Outputs
outputs
10 x 1G Tessera Protocol (Neutrik etherCON / RJ45)
1
Output Pixel Capacity
output_pixel_capacity
525000 per 1G port at 8bpc, 60Hzpx
1
Inputs
inputs
1 x 10G Tessera Protocol copper (etherCON Cat6A/Cat5e) + 1 x 10G fibre (opticalCON DUO) + 10G thru
1
Copper Input Max Distance
copper_input_max_distance
60 (Cat6A) / 30 (Cat5e)m
1
Fibre Input Max Distance
fibre_input_max_distance
2km
1
Fibre Type
fibre_type
1310nm 9/125um single-mode (PC/UPC)
1
Dimensions
dimensions
431.8 x 88.5 x 209.6 (WxHxL)mm
1
Rack units
rack_units
2U
1
Weight
weight_kg
3.7kg
1
Mounting
mounting
2U 19" rack ears or truss-mount via chassis holes
1
Power input
power_input
100-240V AC, 50-60Hz, 0.4-0.2A (switched autoranging)
1
Power connector
power_connector
PowerCON TRUE1 with through port for daisy-chaining (16A max)
1
Display
display
Capacitive touch LCD
1
Warranty
warranty
2years
1
Certifications
certifications
CE, ETL/cETL
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
