✦Moving Head (Spot/Wash/Beam)

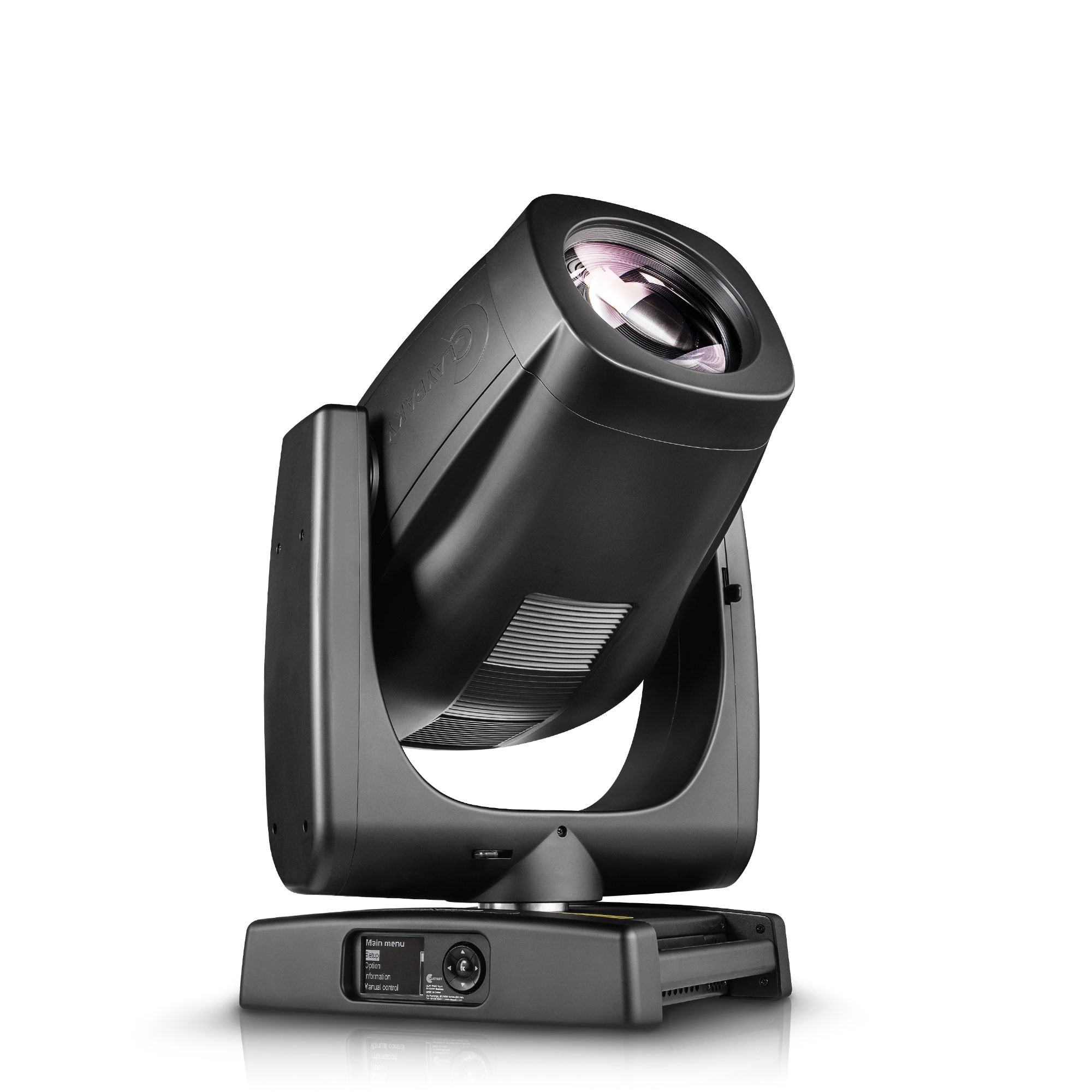

Sharpy X Frame

Manufacturer
Clay Paky
Model
CD3003
Code
GW-AMJBJY
Data status
Level 1 / 5
AI-parsed

❋ Specs

16
Light source
light_source
Philips MSD Platinum 25R 550W arc lamp
1
Power
power_w
550W
1
Color temperature
color_temperature_k
8000K
1
CRI
cri
80+
1
Luminous flux
luminous_flux_lm
18800lm
1
Zoom Range Spot
zoom_range_spot
3-52deg
1
Zoom Range Beam
zoom_range_beam
2-29deg
1
Front Lens Diameter
front_lens_diameter_mm
160mm
1
Weight
weight_kg
28kg
1
Dimensions
dimensions
306 x 350 mm base, 668 mm heightmm
1
Power consumption
power_consumption_va
750VA
1
Pan / Tilt
pan_tilt_deg
540 / 270 (16-bit)deg
1
Gobos
gobos
8 rotating HD gobos, 18 static gobos
1
Prism
prism
4-facet and 8-facet rotating
1
Color system
color_system
Linear CMY, Linear CTO, 14-color wheel
1
Noise Level Dba
noise_level_dba
49.3dBA
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
