✦System Processors

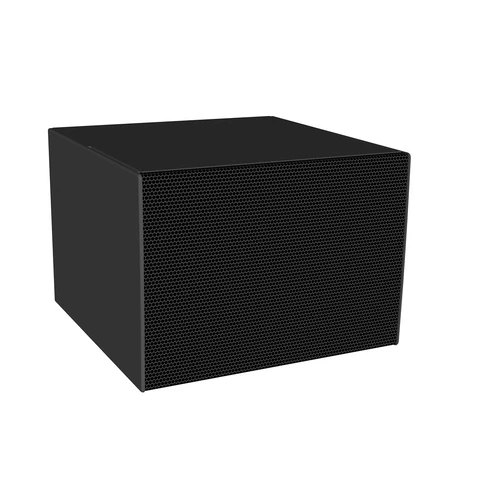

LVH-906/AS

Manufacturer
Community Professional Loudspeakers
Model
LVH-906/AS
Code
GW-EB3YOW
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Type
type
3-way horn-loaded triaxial array, FIR DSP beamforming
1
Frequency range
frequency_range_hz
50-20000Hz
1
Nominal Beamwidth
nominal_beamwidth
60 H x 60/40/20 V (user-selectable presets)deg
1
Max SPL
max_spl_db
142 peak / 136 continuous (processed)dB
1
Drivers
drivers
LF 4x 12 in, MF 3x M200 2 in exit, HF 4x 1.5 in / 1 in exit
1
Crossover frequency
crossover_hz
530 / 1840Hz
1
Power handling
power_handling_w
LF 950 (8 ohm/pair); MF 130/65; HF 65W
1
Weight
weight_kg
113.4 (250 lbs, indoor)kg
1
Dimensions
dimensions
948 x 797 x 775 (37.3 x 31.4 x 30.5 in)mm
1
Operating Mode
operating_mode
Multi-amplifier with FIR DSP beamforming (driven by ALC controllers)
1
