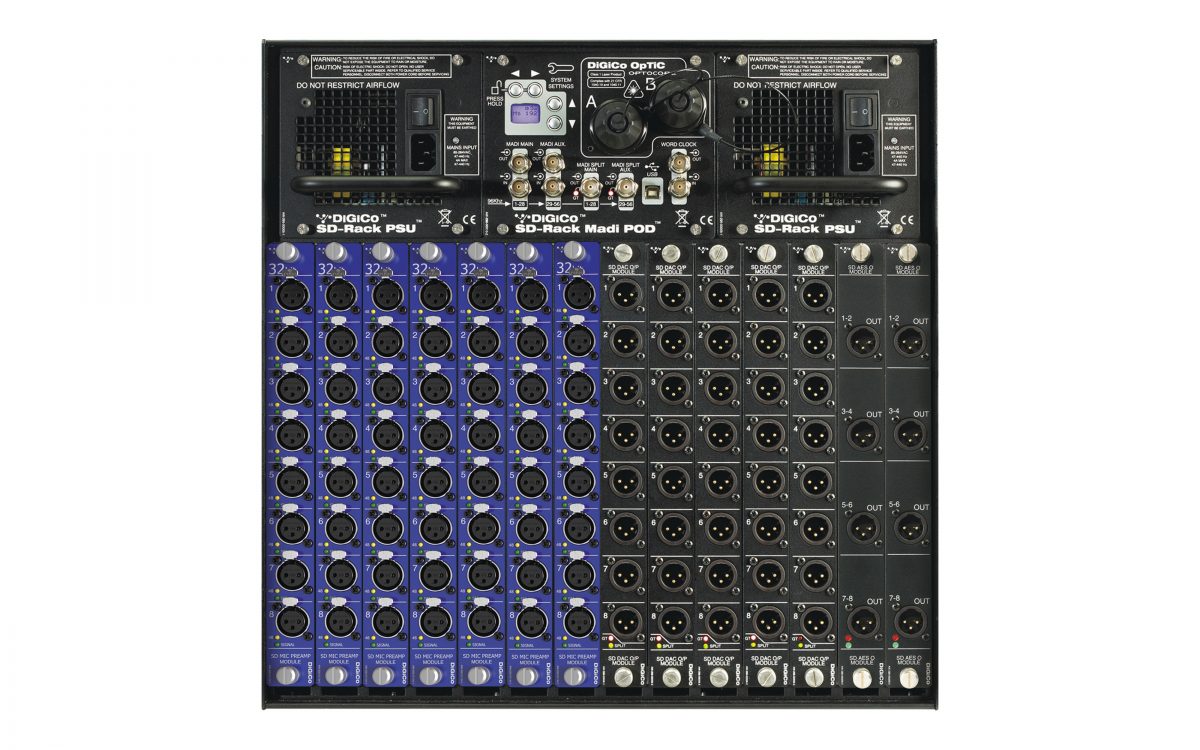

Audio

SD-Rack

Manufacturer
DiGiCo
Model
SD-Rack
Code
GW-8E01NO
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Card Slots
card_slots
14slots
1
Max inputs
max_inputs
56ch
1
Max Outputs
max_outputs
56ch
1
Max sample rate
sample_rate_max_khz
192kHz
1
Rack units
rack_units_u
10U
1
Connectivity
connectivity
MADI (2x BNC main/aux), optional Optocore optical (HMA/OpticalCon/ST), Word Clock BNC, USB 2.0
1
Compatible Cards
compatible_cards
32-bit Mic Pre, 32-bit DAC/ADC, AES/EBU XLR, AES/EBU BNC, AES42, Dante, ADAT, SDI, Aviom
1
Psu
psu
2x redundant hot-swappable
1
Features
features
Gain Tracking, MADI split outputs with inbuilt SRC, internal oscillator
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
