✦Truss: Straight / Corners

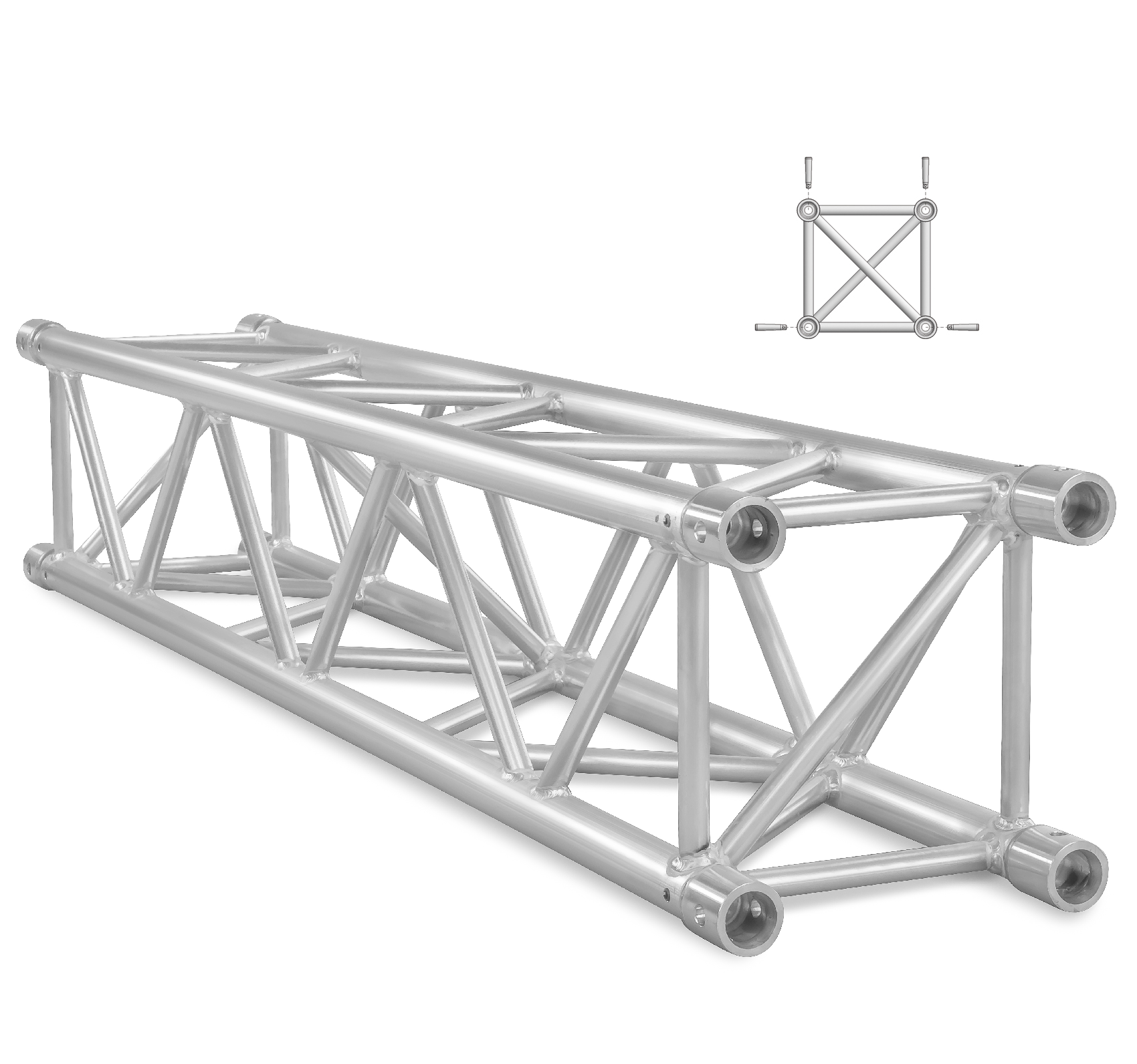

400x400 Box Truss

Manufacturer
Dragon Stage
Model
400x400mm (F44-class)
Code
GW-HOFUVR
Data status
Level 1 / 5
AI-parsed

❋ Specs

8
Cross section
cross_section_mm
400 x 400mm
1
Main tube diameter
main_tube_diameter_mm
50mm
1
Main Tube Wall Thickness
main_tube_wall_thickness_mm
2 / 3 / 4mm
1
Brace Tube Diameter
brace_tube_diameter_mm
20 / 25 / 30mm
1
Brace Tube Wall Thickness
brace_tube_wall_thickness_mm
2mm
1
Material alloy
material_alloy
6061-T6 / 6082-T6 aluminum
1
Available Lengths
available_lengths_m
0.5 - 5m
1
Connection type
connection_type
spigot (conical coupler), bolt option
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
