✦Line Arrays

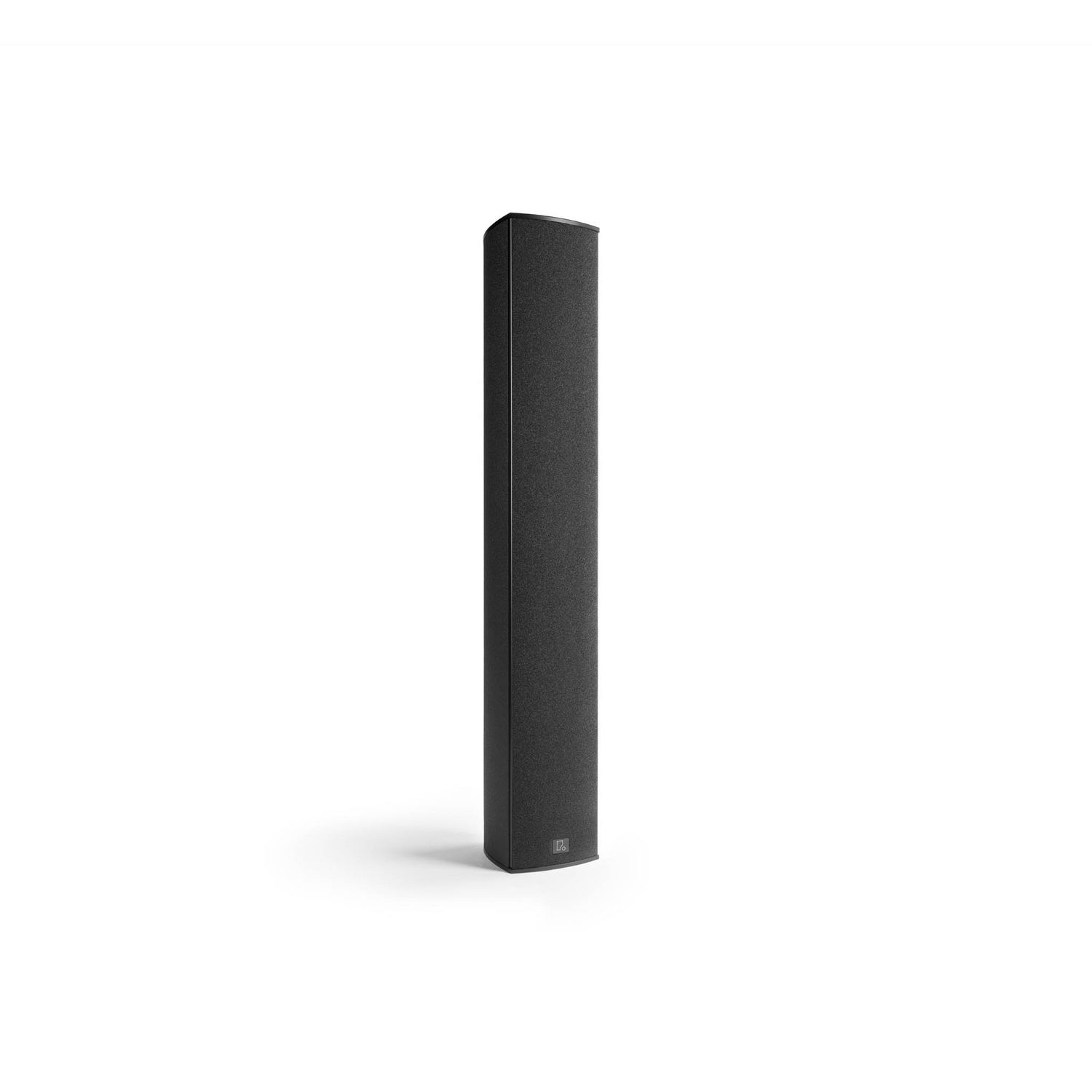

LX-500

Manufacturer
Fohhn Audio
Model
1203
Code
GW-YJTVWQ
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Drivers
drivers
4 x 6.5" + 4 x 1" compression w/ waveguide
1
Frequency range
frequency_range_hz
75-20000Hz
1
Max SPL
max_spl_db
132dB
1
Sensitivity
sensitivity_db
98dB
1
Dispersion
dispersion_deg
100 x 20 (H x V)deg
1
Power Nominal
power_nominal_w
700W
1
Program power
power_program_w
1400W
1
Peak power
power_peak_w
2800W
1
Impedance
impedance_ohm
8ohm
1
Weight
weight_kg
23kg
1
Dimensions
dimensions
198 x 1165 x 241mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
