✦Lighting

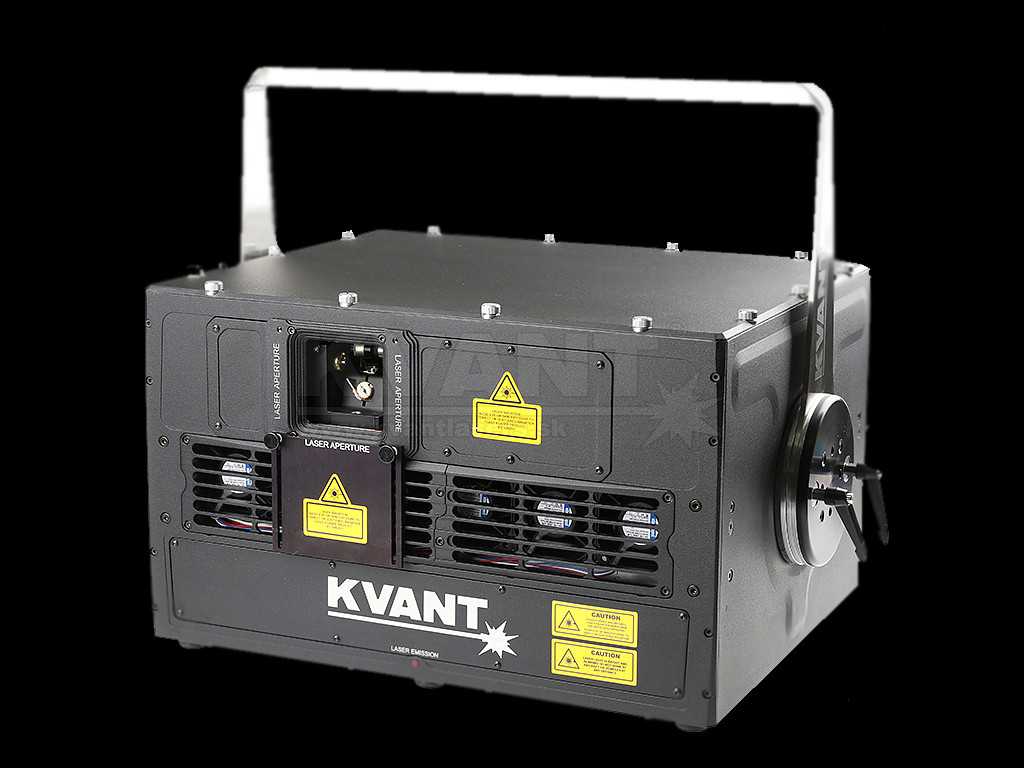

Spectrum 30

Manufacturer
Kvant
Model
Spectrum 30
Code
GW-S0GOAC
Data status
Level 1 / 5
AI-parsed

❋ Specs

18
Optical Power Red Mw
optical_power_red_mw
7300mW
1
Optical Power Green Mw
optical_power_green_mw
10000mW
1
Optical Power Blue Mw
optical_power_blue_mw
11500mW
1
Total Optical Power Mw
total_optical_power_mw
28000mW
1
Beam Size
beam_size_mm
10×10mm
1
Beam divergence
beam_divergence_mrad
<0.5mrad
1
Modulation Max Frequency Hz
modulation_max_frequency_hz
50000Hz
1
Scan speed
scan_speed_kpps
30kpps @ 8° optical angle
1
Max scan angle
max_scan_angle_deg
80degrees
1
Power consumption
power_consumption_va
900VA
1
Input Voltage Range
input_voltage_range
100-230V / 50 Hz
1
Operating Temperature Min Celsius
operating_temperature_min_celsius
10°C
1
Operating Temperature Max Celsius
operating_temperature_max_celsius
35°C
1
Control interface
control_interface
FB4-MAX
1
Colours
colours
RGB (full-colour)
ILDA
ilda
Yes (ILDA in/out, Ethernet, ArtNet, DMX)
Laser power
laser_power_mw
28200mW
Safety class
safety_class
Class 4 (EN/IEC 60825-1)

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
