✦Line Arrays

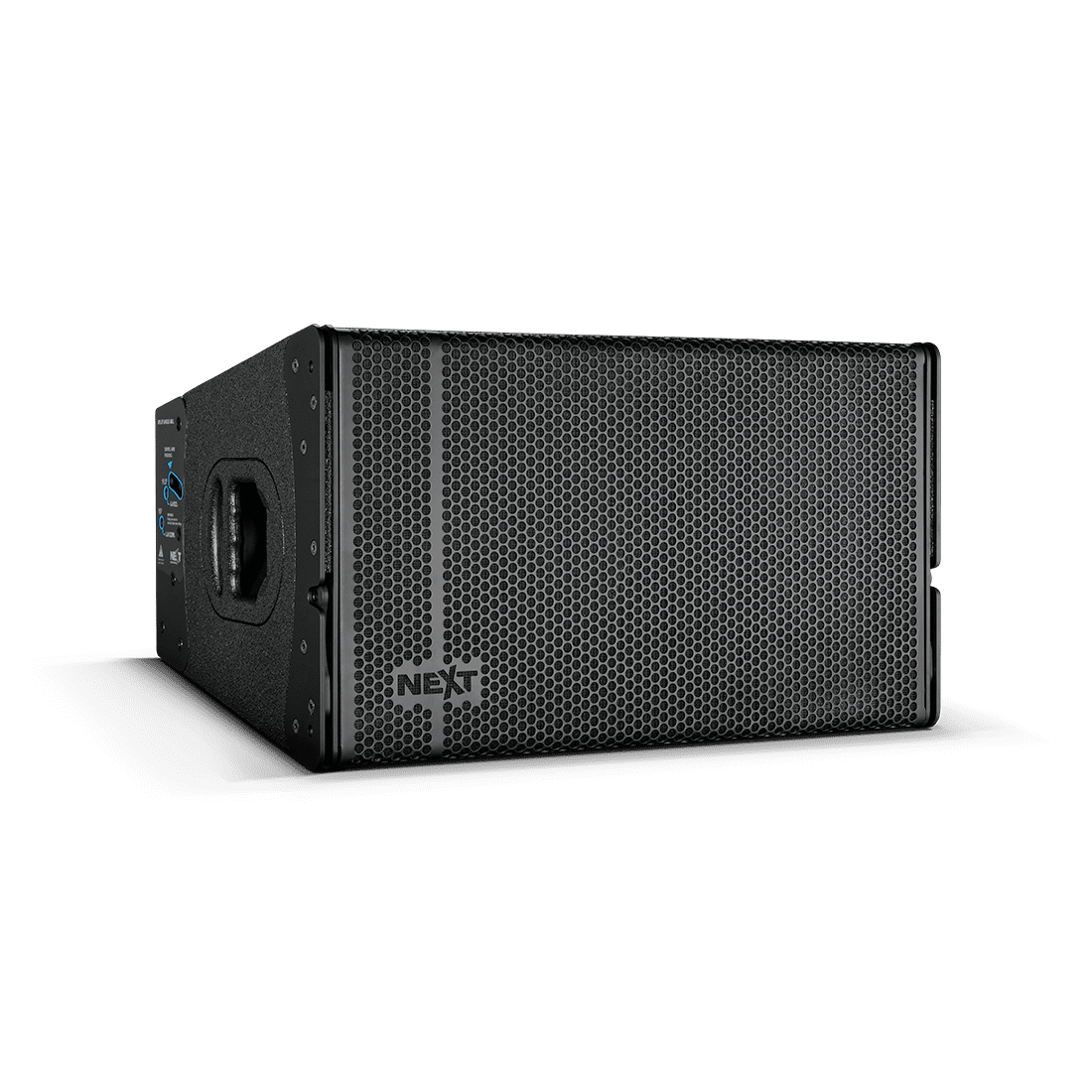

LA122WA

Manufacturer
NEXT-proaudio
Model
NC00125
Code
GW-AVWMPB
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Type
type
2-way active compact wide line array element
1
LF driver
lf_driver
1 x 12" (300mm) Neodymium B&C custom
1
HF drivers
hf_drivers
2 x 1.4" exit B&C compression
1
Amplifier power
amplifier_power_w
1650W
1
Program power
power_program_w
2220W
1
Frequency range
frequency_range_hz
58-19000Hz
1
Max SPL
max_spl_db
128.5dB
1
Dispersion
dispersion_deg
120 x 15deg
1
Weight
weight_kg
35.6kg
1
Dimensions
dimensions
602 x 350 x 465mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
