✦Lighting

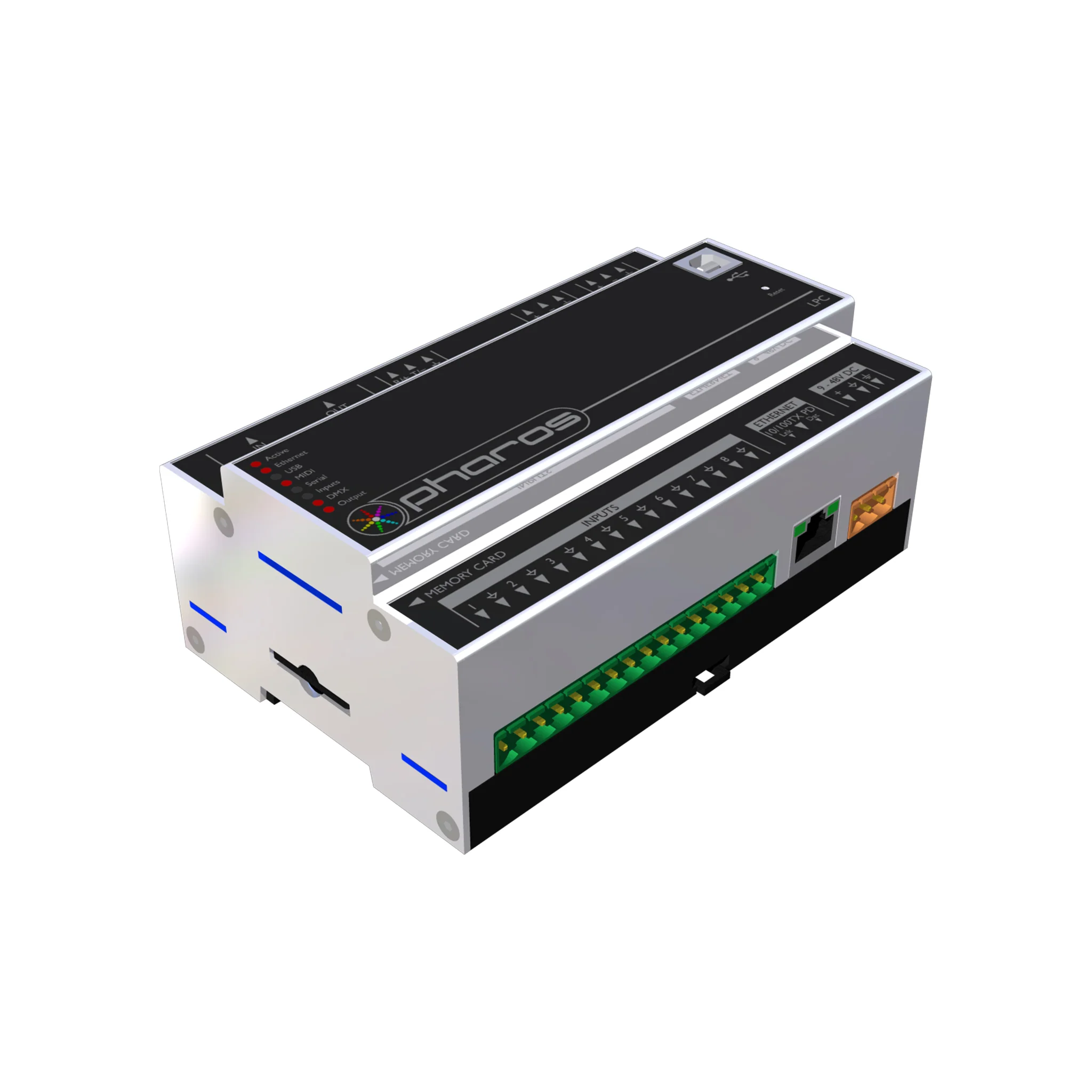

LPC

Manufacturer
Pharos Architectural Controls
Model
LPC 1 / LPC 2 / LPC 4
Code
GW-VUL5GS
Data status
Level 1 / 5
AI-parsed

❋ Specs

14
Channel Capacity
channel_capacity
512 (LPC 1) / 1024 (LPC 2) / 2048 (LPC 4)channels
1
DMX universes
dmx_universes
1 / 2 / 4universes
1
DMX outputs
dmx_outputs
2 isolated DMX512 ports (RDM, ANSI E1.11-2008), 512 ch each
1
Protocols
protocols
Art-Net (I/II/3/4 tx), sACN (E1.31), KiNET (V1/V2/V3), Pathport, DMX512
1
Network Port
network_port
RJ45 10/100Base-TX (dual IP for eDMX, VLAN 802.1Q)
1
Additional Io
additional_io
8 configurable inputs, MIDI in/out, RS232/RS485, USB-B
1
Real Time Clock
real_time_clock
Battery-backed RTC with astronomical (sunrise/sunset/lunar) functions
1
Mounting
mounting
8-unit-wide DIN rail (DIN43880 / EN60715 35/7.5)
1
Dimensions
dimensions
144 x 90 x 58mm
1
Weight
weight_kg
0.5kg
1
Power
power_w
4 typical / 7 max (9-48V DC or PoE 802.3af Class 2)W
1
Operating temperature
operating_temperature
0 to 50C
1
Certifications
certifications
CE, UKCA, ETL/cETL
1
Warranty
warranty_years
5years
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
