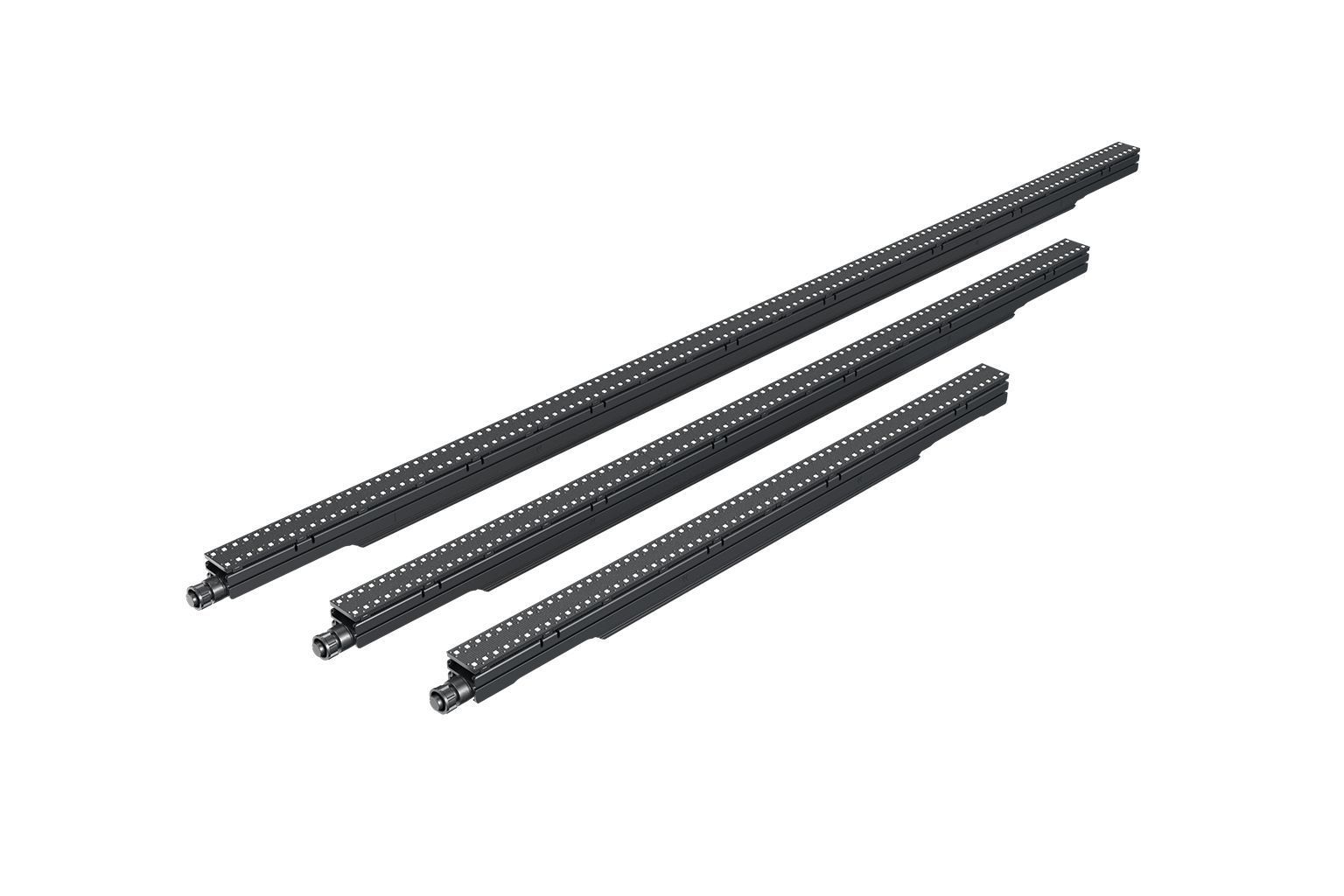

✦Indoor LED

Strip B8

Manufacturer
ROE Visual
Model
Strip B8
Code
GW-XZSPPG
Data status
Level 1 / 5
AI-parsed

❋ Specs

20
Pixel Pitch Horizontal
pixel_pitch_horizontal_mm
18.75mm
1
Pixel Pitch Vertical
pixel_pitch_vertical_mm
9.375mm
1
Pixel Density
pixel_density
5690px/sqm
1
Led Configuration
led_configuration
White SMD 2727 3-in-1
1
Max brightness
brightness_max_nits
7000nits
1
Resolution
resolution
128 x 2px (per 1200mm module)
1
Viewing angle
viewing_angle
140 / 140° (H/V)
1
Refresh rate
refresh_rate_hz
6000Hz
1
Gray Scale
gray_scale
10bit
1
Scan
scan
Static
1
Dimensions
dimensions
1200 x 30 x 39mm (W x H x D, 1200mm module)
1
Module Lengths
module_lengths
300 / 600 / 900 / 1200mm
1
Weight
weight_kg
1.2kg (1200mm module, without diffuser)
1
Frame material
frame_material
Magnesium Alloy
1
Power
power_w
40W (max per 1200mm module)
1
Processing
processing
Brompton
1
Lifetime
lifetime
≥50000h
1
Operating temperature
operating_temperature
-20 to 45°C
1
Certifications
certifications
CE, ETL, RCM, IEC, WEEE
1
Transparency Pct
transparency_pct
Solid
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
