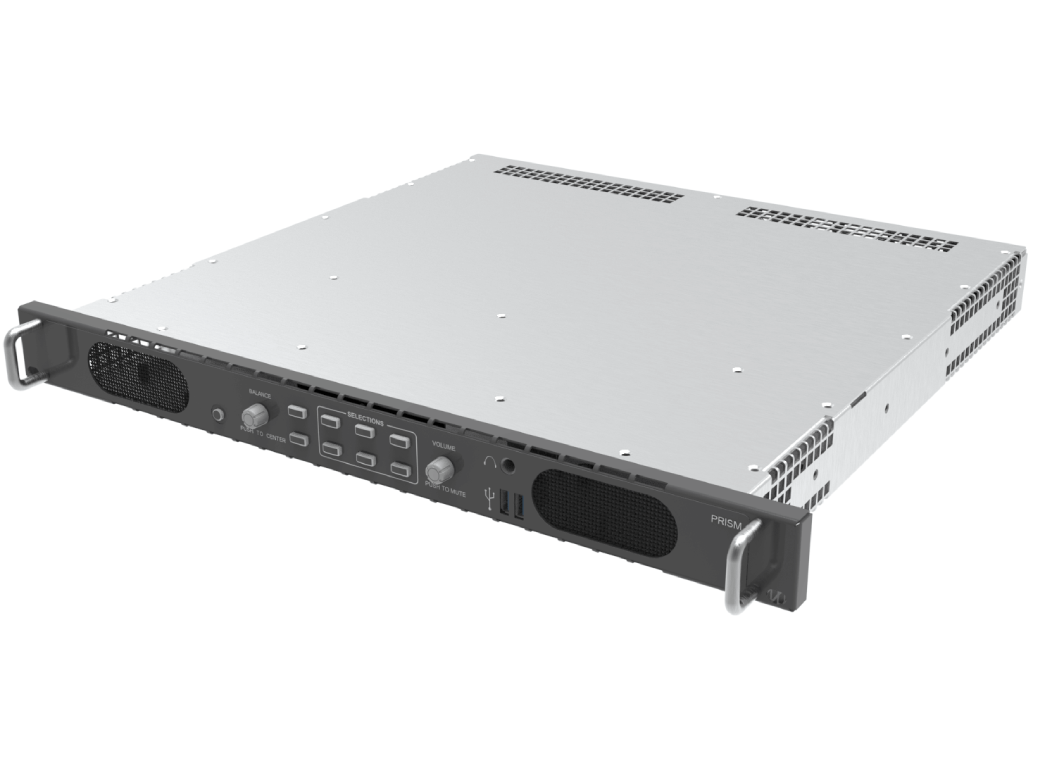

PRISM MPX2-25

Manufacturer
Tektronix
Model
MPX2-25
Code
GW-PMMHBH
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Form factor
form_factor
1RU, full-rack
1
SDI inputs
sdi_inputs
4 (12G/6G/3G/HD/SD-SDI, HD-BNC)
1
Ip Inputs
ip_inputs
2 x SFP28 for 10GbE / 25GbE
1
Max resolution
max_resolution
up to 8K HDR (4x 12G-SDI quad link)
1
Sdi Max Rate Gbps
sdi_max_rate_gbps
12Gb/s
1
Displays
displays
Waveform, Vector, Lightning, Diamond, Picture, Video Session, Audio, Event Log, Timing, IP Status
1
External Display
external_display
external monitor (up to 4K via DisplayPort)
1
Supported Standards
supported_standards
SMPTE ST 2022-6, ST 2110, ST 2059 (PTP), NMOS
1
Height
height_mm
44mm
1
Width
width_mm
483mm
1
Depth
depth_mm
313mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
