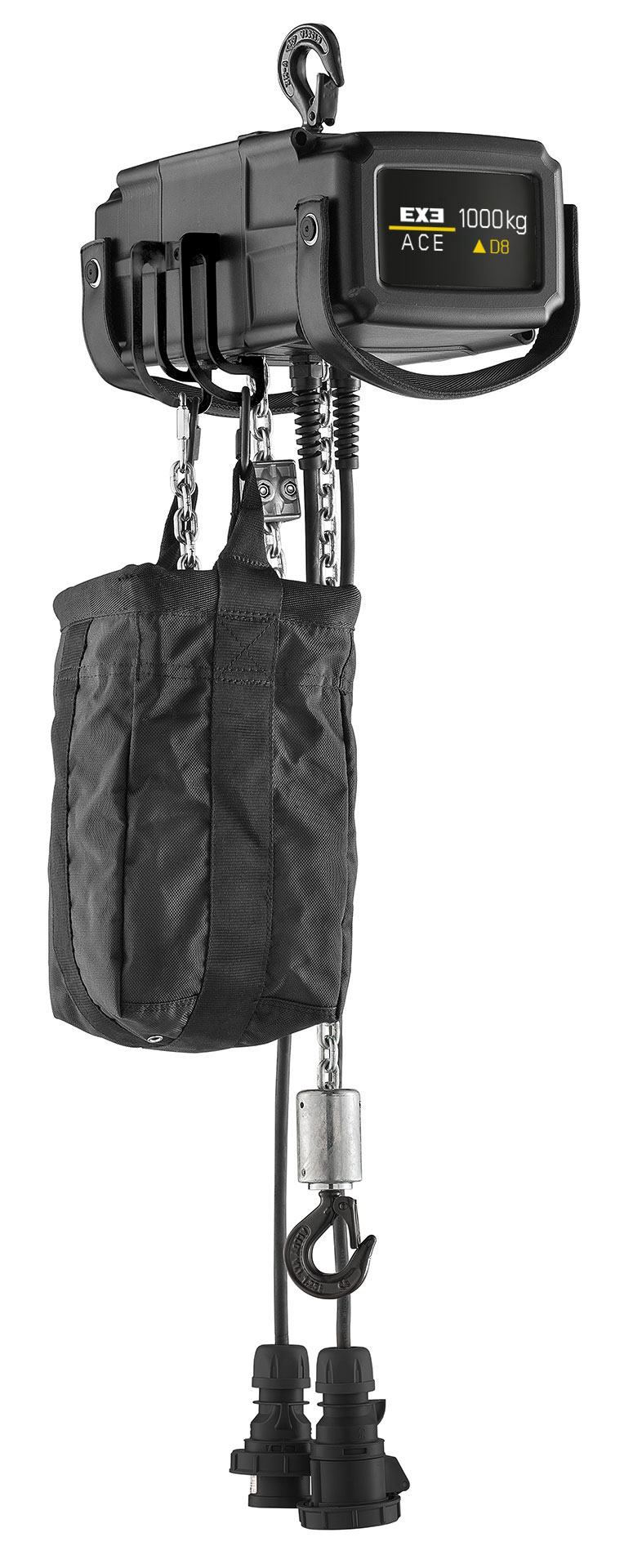

EXE Ace D8 1000 kg Electric Chain Hoist

Manufacturer
Tomcat
Model
EXE Ace D8 1000
Code
GW-7LRG5A
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Lifting Speed M Per Min
lifting_speed_m_per_min
4 @ 50 Hz (16 ft/min @ 60 Hz)m/min
1
Power
power_w
1000 (1.0 kW / 1.34 HP)W
1
Power supply
power_supply
208 VAC-3-60Hz (NA) / 230-400 VAC-3-50HzVAC
1
Chain size
chain_size_mm
6.3 x 19mm
1
Falls Of Chain
falls_of_chain
1
1
Chain Self Weight Kg Per
chain_self_weight_kg_per_m
0.96kg/m
1
Safety factor
safety_factor
5:1
1
Noise level
noise_level_db
67.5 @ full loaddB
1
Weight
weight_kg
25 (55 lb)kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
