✦Moving Head (Spot/Wash/Beam)

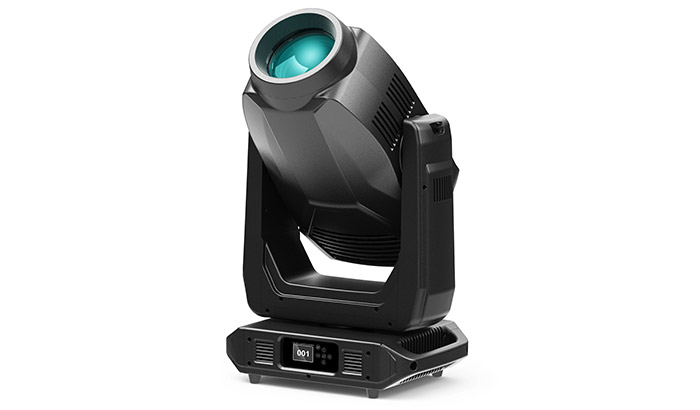

VLZ Profile

Manufacturer
Vari-Lite
Model
VLZ Profile
Code
GW-LZQMZW
Data status
Level 1 / 5
AI-parsed

❋ Specs

28
Light source
light_source
ESE Monochromatic White LED
1
Source Lumens
source_lumens
40000lm
1
Output lumens
output_lumens
24000lm
1
Source Cct K
source_cct_k
8000K
1
CRI (Ra)
cri_ra
>70
1
Power
power_w
920W
1
Source Max Power
source_max_power_w
620W
1
Power Connection
power_connection
Neutrik TrueOne (powerCON TRUE1)
1
Zoom range
zoom_range_deg
8-50deg
1
Front lens
front_lens_mm
140mm
1
Pan Angle Deg
pan_angle_deg
540deg
1
Tilt Angle Deg
tilt_angle_deg
270deg
1
Color system
color_system
CMY Glass Flags + variable CTO (6500-2700 K), 16-bit
1
Color wheel
color_wheel
1 wheel, 6 color + open, split colors / spin / shake
1
Gobo Wheel 1
gobo_wheel_1
7 + open rotating/indexing, interchangeable glass
1
Gobo Wheel 2
gobo_wheel_2
7 + open fixed, interchangeable glass
1
Prism
prism
3-facet round (index/rotation/MegaStep)
1
Framing Shutters
framing_shutters
4-blade full wipe, +/-90 deg frame rotation
1
Iris
iris
16-leaf, open to 80% closing
1
Frost
frost
Variable light frost + heavy wash frost
1
Dimming
dimming
Electronic 16-bit, 4 selectable curves
1
Control protocols
control_protocols
DMX-512A (RDM), ArtNet; 5-pin XLR in/thru, RJ45 in
1
DMX channels
dmx_channels
56 (16-bit) / 61 (16-bit Enhanced)
1
Weight
weight_kg
42.0kg
1
Dimensions
dimensions
319 x 461 x 793mm
1
Hanging Centers
hanging_centers_mm
687mm
1
Operating temperature
operating_temperature
-10 to 45degC
1
Noise level
noise_level_db
33-52 (Whisper/Studio/Standard, base 30)dB
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
