✦Audio

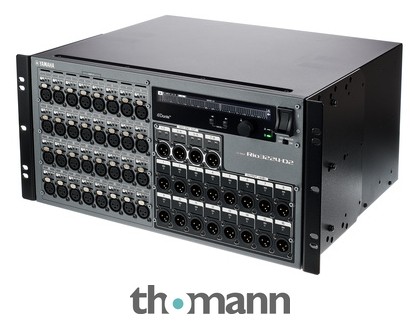

Rio3224-D2

Manufacturer
Yamaha
Model
Rio3224-D2
Code
GW-GUW9B2
Data status
Level 1 / 5
AI-parsed

❋ Specs

16
Analog Inputs
analog_inputs
32ch
1
Analog Outputs
analog_outputs
16ch
1
Aes Ebu Outputs
aes_ebu_outputs
8ch
1
Network
network
Dante (Primary/Secondary, etherCON Cat5e), redundant + daisy-chain
1
Sample rate
sample_rate_khz
44.1 / 48 / 88.2 / 96kHz
1
Mic Preamp Gain Db
mic_preamp_gain_db
-6 to +66dB
1
Dynamic range
dynamic_range_db
112 (DA typ)dB
1
Power
power_w
120W
1
Dimensions Wxhxd
dimensions_wxhxd_mm
480 x 220 x 368mm
1
Weight
weight_kg
13.5kg
1
Rack units
rack_units_u
5U
1
Connectors
connectors
Dante primary/secondary redundant (etherCON), AES/EBU x8
1
Dimensions
dimensions_mm
480x220x368mm
1
Inputs
inputs
32analog
1
Outputs
outputs
16 analog + 8 AES/EBU digital
1
Phantom power
phantom_power_v
48V
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
