✦Point Source / Full-Range

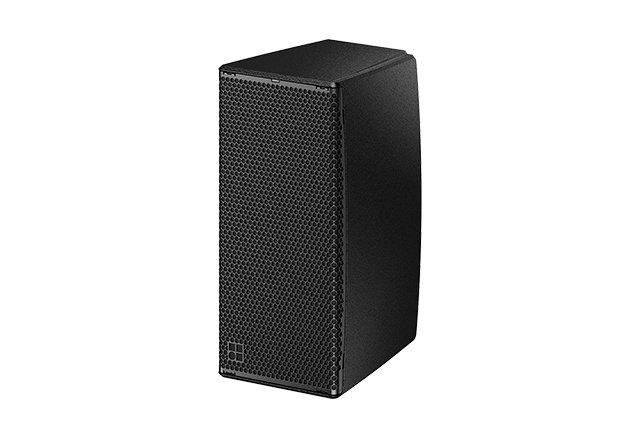

E8

Manufacturer
d&b audiotechnik
Model
Z0620
Code
GW-7BCUTM
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Configuration
configuration
2-way passive coaxial
1
Drivers
drivers
8" driver with neodymium magnet; 1" exit compression driver with 1.75" coil and rotatable CD horn; passive crossover network
1
Frequency range
frequency_range_hz
62-18000Hz
1
Max SPL
max_spl_db
129dB
1
Power
power_w
150 RMS / 800 peak (10 ms)W
1
Nominal impedance
nominal_impedance_ohm
12Ω
1
Dispersion
dispersion_deg
90° x 50° rotatable to 50° x 90° (h x v)
1
Dimensions
dimensions
232 x 390 x 223 (W x H x D)mm
1
Weight
weight_kg
7.3kg
1
Connectors
connectors
2 x NLT4 F/M; optional 2 x NL4
1
Recommended amplifier
recommended_amplifier
d&b D20 / D40 / D80
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
D20GW-4ECMEVD40GW-VLG5AOD80GW-W0VOZ9

d&b D20 / D40 / D80
