✦Subwoofers

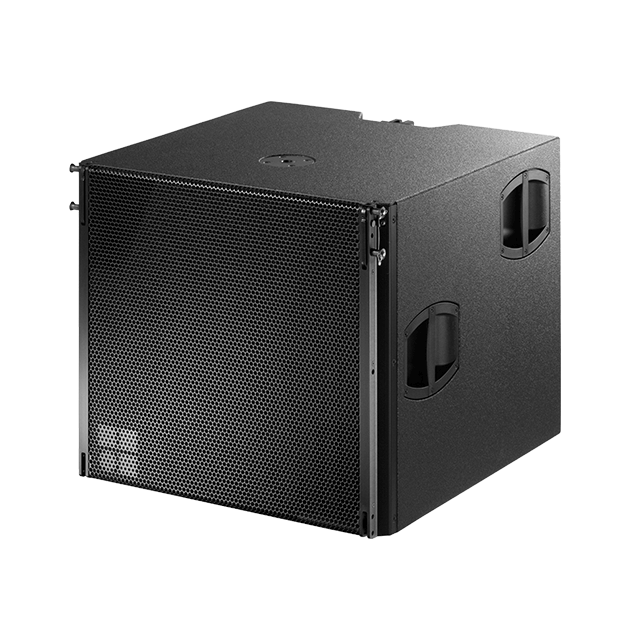

V-SUB

Manufacturer
d&b audiotechnik
Model
Z0518
Code
GW-NP7IAT
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Configuration
configuration
flyable cardioid subwoofer
1
Drivers
drivers
1x 18" bass-reflex (front) + 1x 12" bandpass (rear), neodymium
1
Frequency range
frequency_range_hz
37-115Hz
1
Max SPL
max_spl_db
137dB
1
Weight
weight_kg
64kg
1
Dimensions
dimensions
606 x 700 x 728/830mm
1
Nominal impedance
nominal_impedance_ohm
8Ohm
1
Power
power_w
800/3200 (RMS/peak 10 ms)W
1
Amplifier
amplifier
d&b amplifier, 2 cabinets per channel
1
Recommended amplifier
recommended_amplifier
d&b D80 / D40 (also D20, installation 40D)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
D80GW-W0VOZ9D40GW-VLG5AOD20GW-4ECMEV

d&b D80 / D40 (also D20, installation 40D)
