✦Point Source / Full-Range

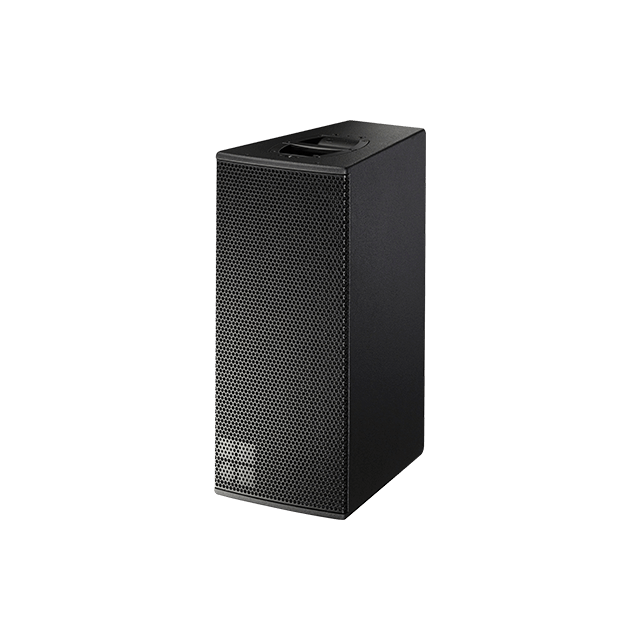

V7P

Manufacturer
d&b audiotechnik
Model
V7P
Code
GW-1MZM7B
Data status
Level 1 / 5
AI-parsed

❋ Specs

19
Weight
weight_kg
33
1
Height
height_mm
700
1
Width
width_mm
308
1
Depth
depth_mm
466
1
Frequency Range Standard Hz
frequency_range_standard_hz
59–18000
1
Frequency Range Cut Mode Hz
frequency_range_cut_mode_hz
100–18000
1
Max Spl 1M With D20 30D Db
max_spl_1m_with_d20_30d_db
137
1
Max Spl 1M With D40 D80 40D Db
max_spl_1m_with_d40_d80_40d_db
140
1
Nominal impedance
nominal_impedance_ohm
8
1
RMS power
power_rms_w
500
1
Power Peak 10Ms
power_peak_10ms_w
2000
1
Horizontal coverage
horizontal_coverage_deg
75
1
Vertical coverage
vertical_coverage_deg
40
1
LF drivers
lf_drivers
2x 10 inch neodymium
1
Mf Driver
mf_driver
1x 8 inch neodymium
1
HF driver
hf_driver
1x 1.4 inch exit compression
1
Cabinet material
cabinet_material
marine plywood with Polyurea Cabinet Protection
1
Connector Options
connector_options
NL4, NLT4 F/M, EP5
1
Recommended amplifier
recommended_amplifier
d&b D40 / D80
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
D40GW-VLG5AOD80GW-W0VOZ9

d&b D40 / D80
