✦Video & Media

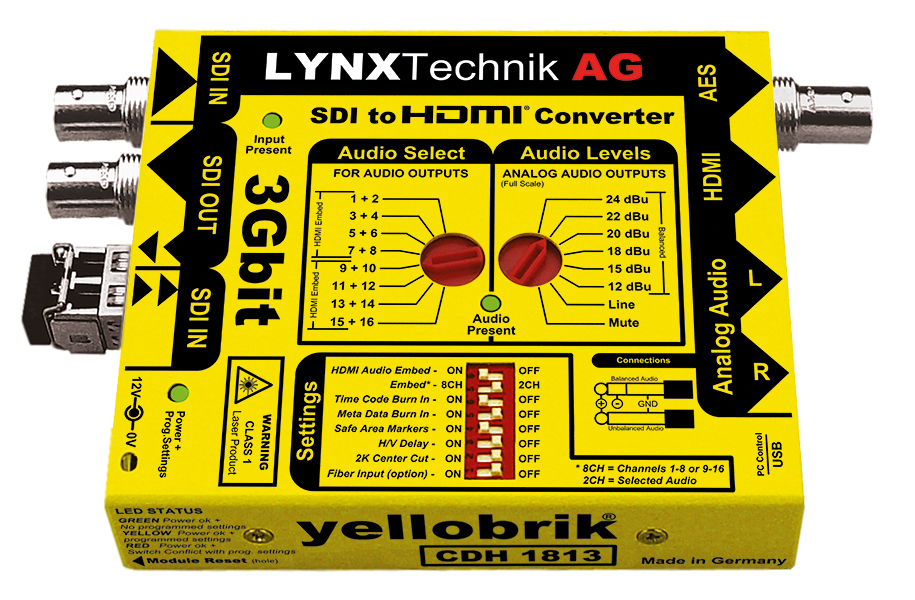

CDH 1813

Manufacturer
LYNX Technik
Model
CDH 1813
Code
GW-LMAKHI
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
SDI standards
sdi_standards
SMPTE 424M (3Gb/s) ST 425-1 Level A / ST 425-2
1
Hdmi Output
hdmi_output
10-bit HDMI 1.4a, deep color, embedded audio, 3D
1
Audio De Embed
audio_de_embed
AES3id 2ch on BNC + analog L/R; 2 or 8ch embed to HDMI
1
3D Modes
3d_modes
side-by-side, top-bottom, dual stream (SMPTE ST-423-2)
1
Cable Reach
cable_reach
340m @270Mb/s, 150m @1.5Gb/s, 120m @3Gb/s
1
Power
power_w
3.7W
1
Power Supply Vdc
power_supply_vdc
12 (range 10-14)V DC
1
Dimensions
dimensions
138 x 90 x 22mm
1
Weight
weight_g
230g
1
EAN
ean
4250479359833
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
