✦Moving Head (Spot/Wash/Beam)

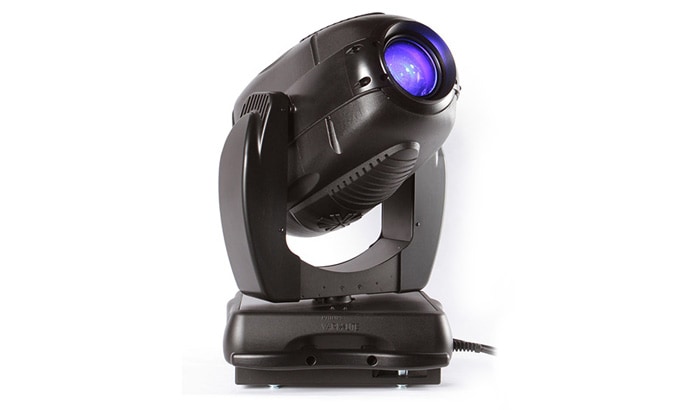

VL3015 Spot

Manufacturer
Vari-Lite
Model
20.9679.0001
Code
GW-32SX5W
Data status
Level 1 / 5
AI-parsed

❋ Specs

18
Weight
weight_kg
43kg
1
Light source
light_source
Triple wattage double-ended short arc lamp
1
Power
power_w
900 / 1200 / 1650W
1
Color temperature
color_temperature_k
6000 at 1650W; 6300 at 900W and 1200WK
1
Luminous flux
luminous_flux_lm
27000 (peaked reflector); 22000 (flat field reflector)lm
1
Zoom range
zoom_range_deg
10-60deg
1
Optics
optics
13-element 6:1 zoom optics system
1
Color system
color_system
Three-filter CYM color mixing, six-position color wheel, variable CTO correction
1
Gobo wheels
gobo_wheels
Three gobo/effects wheels (14 rotatable, indexable gobo positions)
1
Pan range
pan_range_deg
540deg
1
Tilt range
tilt_range_deg
270deg
1
Accuracy Percent
accuracy_percent
0.3deg
1
DMX channels
dmx_channels
28
1
Control
control
DMX512
1
Frequency
frequency_hz
50/60Hz
1
Operating temperature
operating_temperature
-20 to 104 F (-29 to 40 C)
1
Cooling
cooling
Forced air cooling
1
Spacing
spacing
Hangs on 26 in. (66 cm) centers
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
