✦Point Source / Full-Range

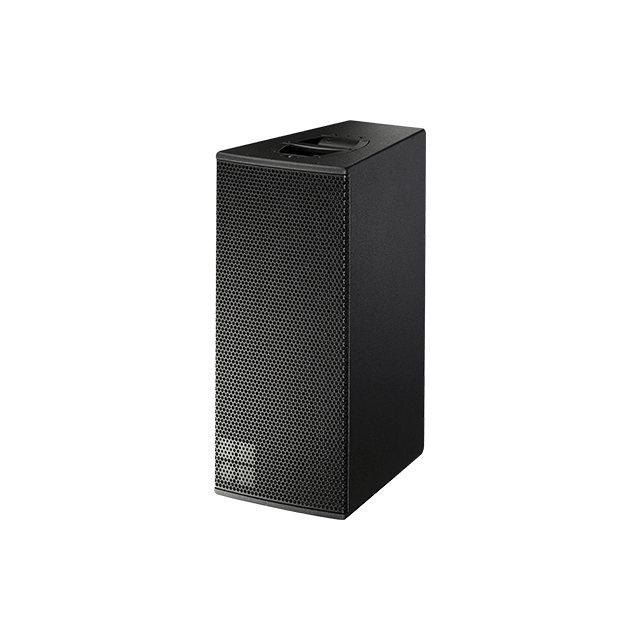

V10P

Manufacturer
d&b audiotechnik
Model
V10P
Code
GW-Z2IFOW
Data status
Level 1 / 5
AI-parsed

❋ Specs

21
Height
height_mm
700
1
Width
width_mm
308
1
Depth
depth_mm
466
1
Weight
weight_kg
33
1
Frequency Range Standard Hz
frequency_range_standard_hz
59 – 18000
1
Frequency Range Cut Mode Hz
frequency_range_cut_mode_hz
100 – 18000
1
Max Spl 1M D20 30D Db
max_spl_1m_d20_30d_db
136
1
Max Spl 1M D80 Db
max_spl_1m_d80_db
139
1
Horizontal coverage
horizontal_coverage_deg
110
1
Vertical coverage
vertical_coverage_deg
40
1
RMS power
power_rms_w
500
1
Power Peak 10Ms
power_peak_10ms_w
2000
1
Nominal impedance
nominal_impedance_ohm
8
1
Amplifier Channels
amplifier_channels
2
1
Lf Drivers Count Inches
lf_drivers_count_inches
2 × 10
1
Mf Driver Inches
mf_driver_inches
8
1
Hf Driver Inches
hf_driver_inches
1.4
1
Cabinet material
cabinet_material
marine plywood with PCP protection
1
Rigging Inserts
rigging_inserts
M10 threaded inserts, three additional M10 fittings for 8mm pin
1
Configuration Type
configuration_type
3-way passive
1
Recommended amplifier
recommended_amplifier
d&b D80 / D40 / D20 (or install versions 40D / 30D)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
D80GW-W0VOZ9D40GW-VLG5AOD20GW-4ECMEV30DGW-TIYI3N

d&b D80 / D40 / D20 (or install versions 40D / 30D)
