✦Line Arrays

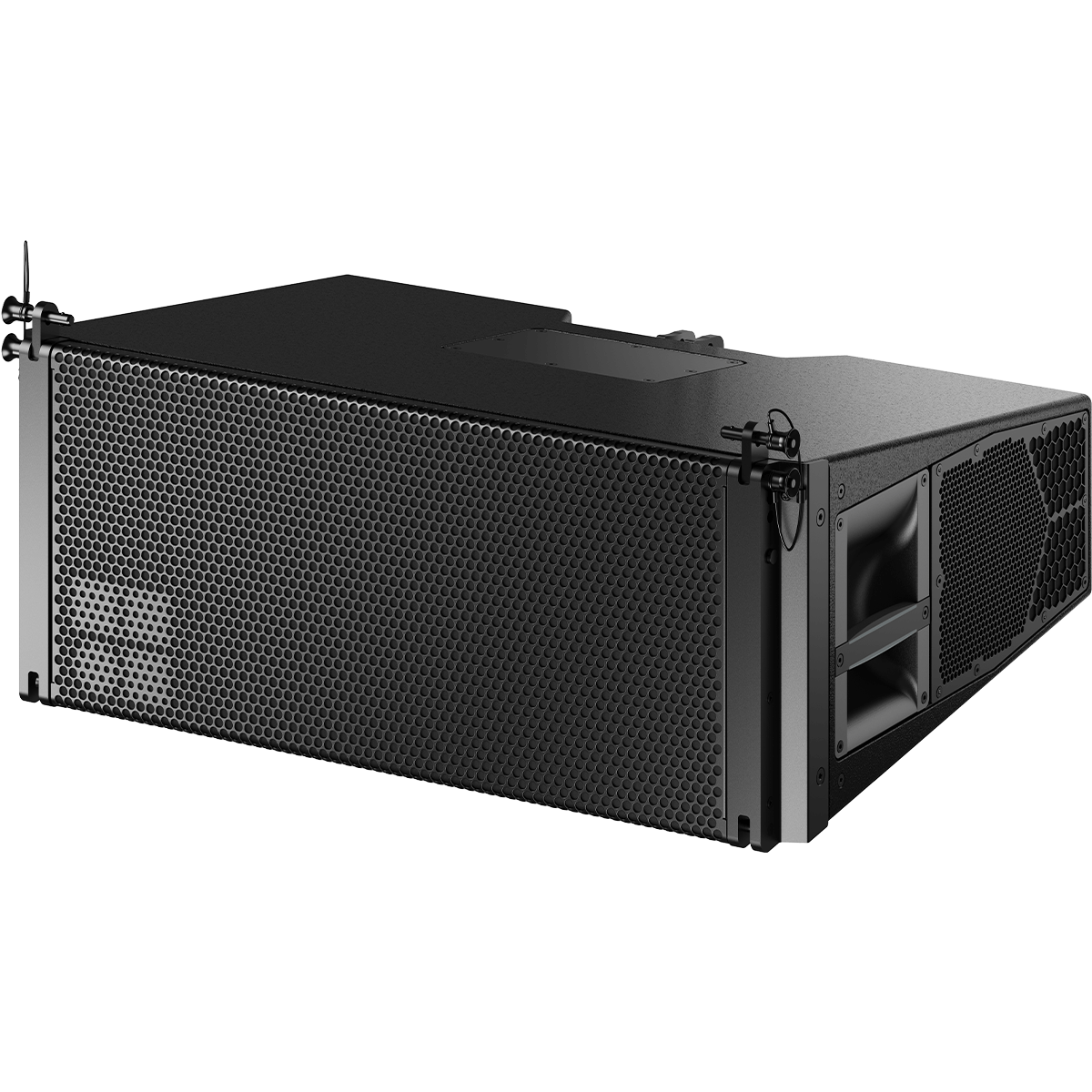

XSL

Manufacturer
d&b audiotechnik
Model
XSL
Code
GW-TGJJHE
Data status
Level 1 / 5
AI-parsed

❋ Specs

19
Frequency range
frequency_range_hz
60–18000Hz
1
Max SPL
max_spl_db
141 (XSL8) / 140 (XSL12)dB @ 1 m
1
Horizontal Coverage Deg Xsl8
horizontal_coverage_deg_xsl8
80°
1
Horizontal Coverage Deg Xsl12
horizontal_coverage_deg_xsl12
120°
1
Vertical Splay Range Deg
vertical_splay_range_deg
0–14°
1
Width
width_mm
700mm
1
Height
height_mm
283mm
1
Depth
depth_mm
507mm
1
Weight
weight_kg
39kg
1
Power Handling Lf Rms
power_handling_lf_rms_w
400 (forward), 300 (side)W
1
Power Handling Lf Peak
power_handling_lf_peak_w
1200 (forward), 850 (side/MF/HF)W
1
Connector type
connector_type
speakON NLT4 F/M
1
Max Array Units
max_array_units
24 (compression/tension) or 12 (smaller frames)
1
Enclosure material
enclosure_material
cast ABS-polycarbonate with 2K coating
1
Lf Drivers Forward Count
lf_drivers_forward_count
2 × 8" neodymium
1
Lf Drivers Side Count
lf_drivers_side_count
2 × 6.5" neodymium
1
Mf Driver Count
mf_driver_count
1 × 6.5" horn-loaded
1
Hf Drivers Count
hf_drivers_count
2 × 1" compression
1
Recommended amplifier
recommended_amplifier
d&b D40 / D80
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
D40GW-VLG5AOD80GW-W0VOZ9

d&b D40 / D80
