✦Line Arrays

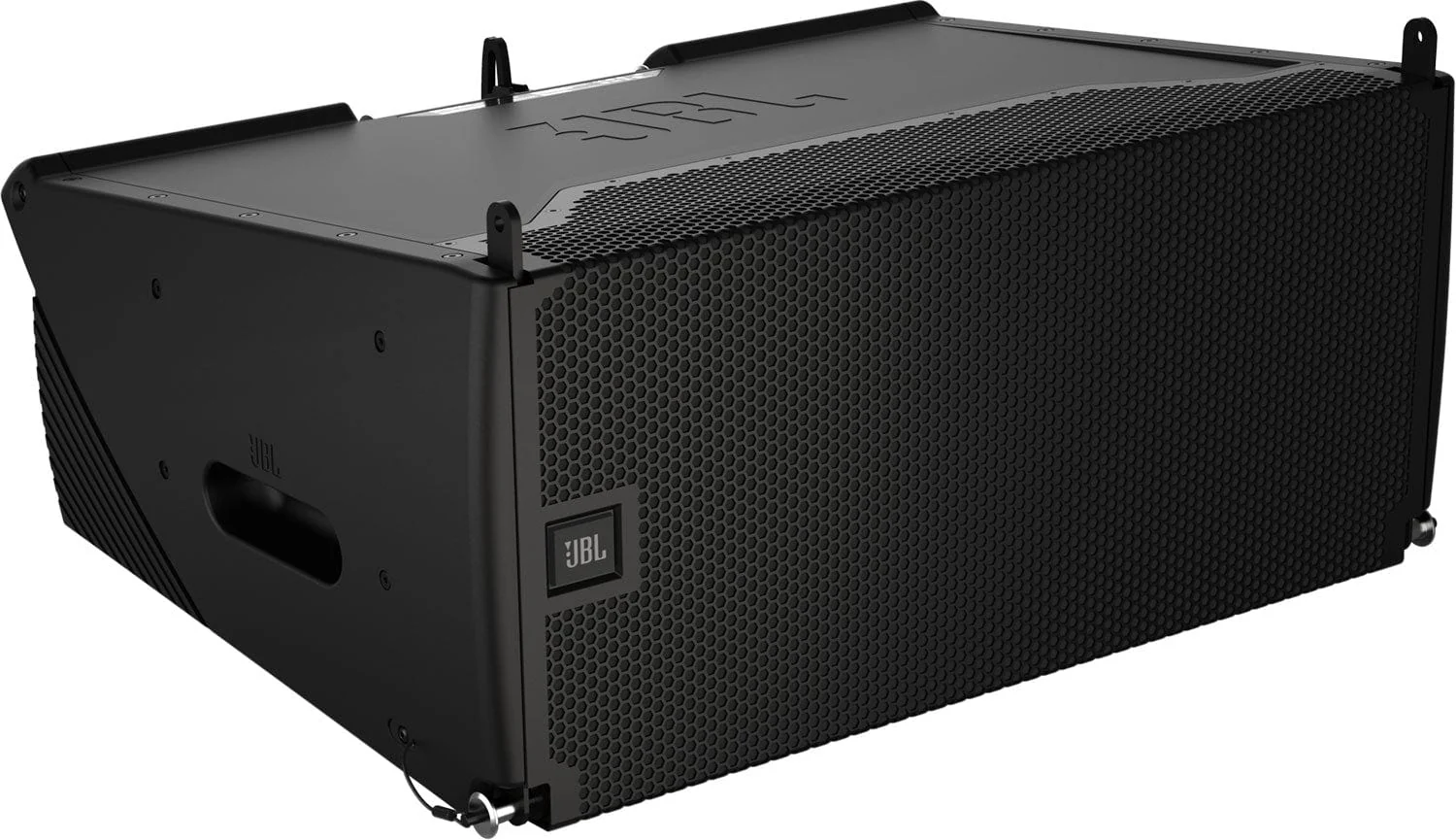

SRX910LA

Manufacturer
JBL Professional
Model
SRX910LA
Code
GW-5JRME8
Data status
Level 1 / 5
AI-parsed

❋ Specs

22
Frequency Range Minus 10Db Hz
frequency_range_minus_10db_hz
53–19000Hz
1
Frequency Range Minus 3Db Hz
frequency_range_minus_3db_hz
60–18000Hz
1
Max SPL
max_spl_db
135dB
1
Horizontal coverage
horizontal_coverage_deg
105°
1
Rated power
rated_power_w
600W
1
Rated Power Lf
rated_power_lf_w
400W
1
Rated Power Hf
rated_power_hf_w
200W
1
Peak power
power_peak_w
880W
1
Amplifier class
amplifier_class
D
1
Lf Drivers Qty
lf_drivers_qty
2
1
Lf Driver Model
lf_driver_model
JBL 261G-1
1
Lf Driver Size Inches
lf_driver_size_inches
10
1
Hf Driver Model
hf_driver_model
JBL 2432H-3
1
Hf Driver Type
hf_driver_type
compression driver
1
Hf Exit Size Inches
hf_exit_size_inches
1.5
1
Enclosure material
enclosure_material
polypropylene with aluminum faceplate, plywood internal bracing
1
Height
height_mm
305
1
Width
width_mm
716
1
Depth
depth_mm
519
1
Weight
weight_kg
26.7
1
Configurable Array Angles Deg
configurable_array_angles_deg
0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers

Self-powered (built-in amplifier)
